100 kN Materials Test Cryostat

Model # MR-100 kN TTC/RCFC

250 kN Materials Test Cryostat

Model # MR-250 kN TTC/RCFC

These versatile cryostats are for low-temperature mechanical tests (4 K to 300 K);

• Metals
• Polymers
• Composite specimens

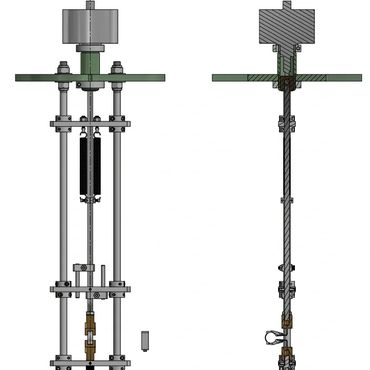

  General Description:

• A custom system that is retrofit to a universal test machine to enable testing at LN2 and LHe temperatures (77 K and 4 K).
• MR supplies only the TTC/RCFC, the customer supplies test machine and liquid cryogens.
• Designed for Tensile, Compression and Fully Reverse Fatigue testing

Specifications:

• 100 kN or 250 kN capacity, 3-post self-reaction frame
• Test sample space 115 mm dia x 430 mm length.
• Threaded high strength stainless steel pull rods

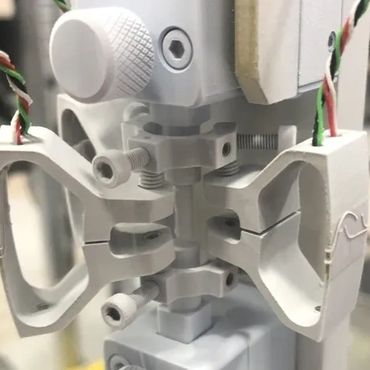

• Grips and fixtures designed per customer request

Cryogenic Chamber:

• Vacuum-insulated liquid helium/nitrogen dewar
• Liquid cryogen ports (fill and exhaust ports)
• Upper Pull-rod positive pressure seal port.
• Cable feed through port with hermetically sealed 32 pins for strain, temperature, LHE, and LN2 level probes.
• Dual channel LHE/LN2 Level Monitor
• LHe and LN2 vacuum-insulated transfer lines
• Cryogenic Temperature Control Option -Enables testing at intermediate temperatures between 300 K and 4 K. Proven 20 K temperature control within +/- 0.5 K.

Extensometer

Model # MR-EXT-001-25-2.5

Temperature Range: 300 K to 4 K

ASTM E83 Class: B1

Gage Length: 25 mm

Range: 2.5 mm

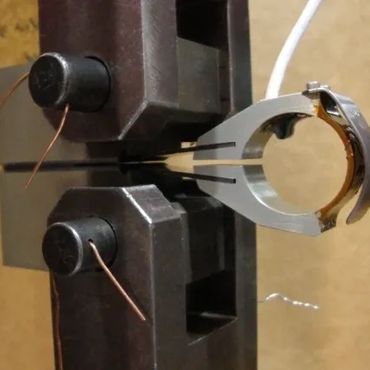

Cryogenic Extensometers for Flat Specimens and Tapes

• Used on metals, polymers, composites, superconductors, wires, tapes, etc.
• Designed for tensile testing according to ASTM E8 and ASTM E1450 (ISO 6892-1 and ISO 6892-4)
• Versatile high-resolution extensometers for low-temperature tests
• Designed for tensile testing according to ASTM E8 and ASTM E1450
• Light weight, easy set-screw attachment, comes in 2 different spring force ratings; the lower spring force is intended for delicate specimen strain measurements

Custom designs available upon request.

Extensometer

Model # MR-EXT-003-25-2.5

Model # MR-EXT-003-25-5

Temperature Range: 300 K to 4 K

ASTM E83 Class: B1

Gage Length: 25 mm

Range: 2.5 mm

Set of three (3) averaging high-resolution extensometers for cylindrical tensile specimens

• Versatile high-resolution extensometers for low-temperature tests
• Available with either 2.5 mm or 5 mm range
• For round tensile specimens with diameters from 5 mm to 7 mm
• Extensometer collars are set up on a 25-mm gage length and retain positive attachment for the design strain range
• The outputs of the three extensometers are averaged for modulus determination according to ASTM E111
• Gage block is used to install extensometer attachment collars.
• Safe fall design ensures long extensometer life

Custom designs available upon request.

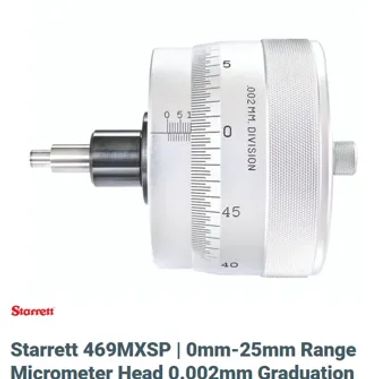

Materials Reliability Calibrator

Model # MR-002-CDGC

Low-temperature displacement calibrator for extensometers and CODs

Knife Edge Gage Length: 2.5 mm

Displacement range: 5 mm

Temperature Range: 4 K to 300 K

Weight: 2.5 g

Full Bridge 350 Ω strain gage design: Excitation 2 to 5 V DC

Lead wire: 2 ft of (4) conductor-shielded Teflon cable
